2 Rows 32 Pin IDC Type Connector Din41612 2.54mm Pitch Female Connector

Product Categories
Dongguan Honshi Electronics Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

2 Rows 32 Pin IDC Type Connector Din41612 2.54mm Pitch Female Connector

Place of Origin : China

Brand Name : HONSHI

Model Number : 3812-232FSXXNA01

MOQ : 100 pieces

Price : $0.45 - $0.55/pieces

Certification : ROHS/SGS

Payment Terms : T/T,Paypal

Supply Ability : 100000kpcs

Delivery Time : 10-15 Day

Packaging Details : Tray/Tube

Type : DIN

Application : PCB

Gender : Female

Product name : Din 41612 Connector

Contact Material : Brass

Rated Current : 3AMP

Contact Resistance : 20mΩ

Plated : Gold palted(1U")(can customized)

Packing : Tray

Withstand Voltage : 1000V AC/Minute

Size : Customs

Pin : 32,48,64Pin

Color : Gray,Black

Contact Now

Din41612 Connector IDC Type Female 2 Rows 32 Pins Phosphor Bronze 2.54mm Pin Connector

Product Name Din 41612 Connector
Positions 32-64P
Row 2,3 row
Current Rating 3.0AMP
Contact Resistance 30mΩ Max
Withstand Voltage 1000V AC/DC
Insulation Resistance 1000mΩ
Operation Temperature ﹣55℃ to +105℃
Contact Material Phosphor Bronze
Contact Plating Au And Sn over Ni
Fixing Material Phosphor Bronze
Fixing Plating Sn over Ni
Housing Material PBT/PA6T(UL94V-0)

2 Rows 32 Pin IDC Type Connector Din41612 2.54mm Pitch Female Connector

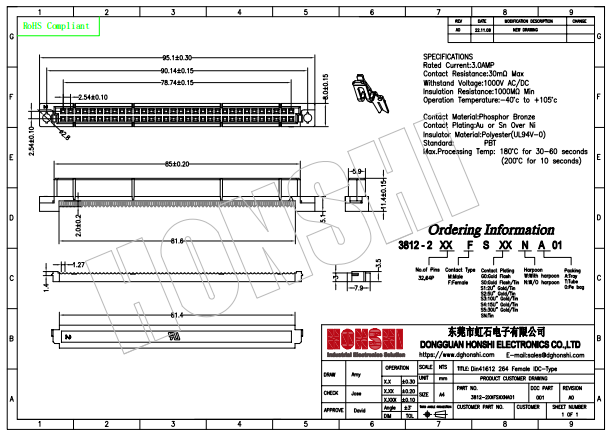

2 Rows 32 Pin IDC Type Connector Din41612 2.54mm Pitch Female Connector Drawing:3812-2XXFSXXNA01.pdf

Item name: DIN 41612 Connector
1. The product precision and reliable performance.
2. Material: Plastic PBT and PA6T, terminal material: copper alloy.
3. DIN 41612 connectors with five rows(a, b, c,d,e) of contacts on 2.54mm square grid are available in wire-wrap or solder tail type terminations. 10pin, 15pin 20pin,30pin, 32pin 48pin 64pin 96pin and 160pin are available.

Service idea:

1. Committed to providing customers with customized, small batch, multi variety, one-stop services.

2. Quick response and effective communication, refined service timely delivery.

3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

4. Free designsupporting samples, the quality is safe and reliable, the price is competitive.

Shipping:
We offer various shipping options to meet our customers' needs. Standard shipping is available for domestic and international orders, and expedited shipping is available for urgent orders. Our shipping rates are calculated based on the weight and destination of the package.
